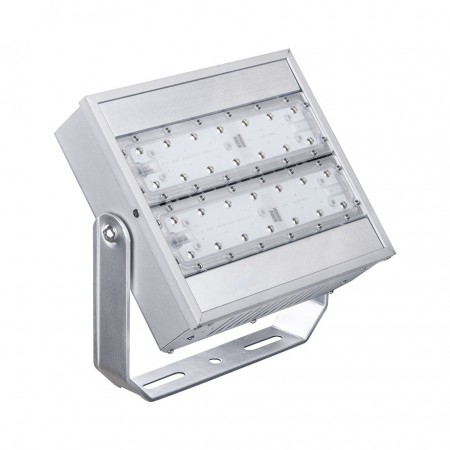

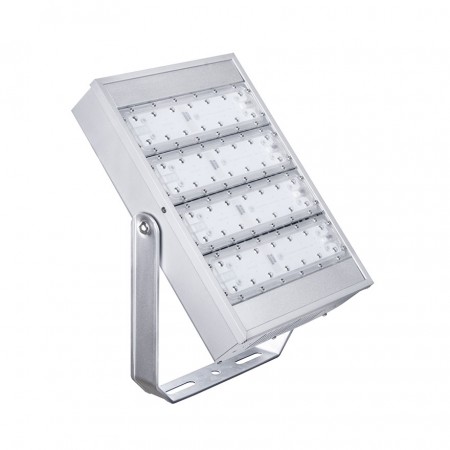

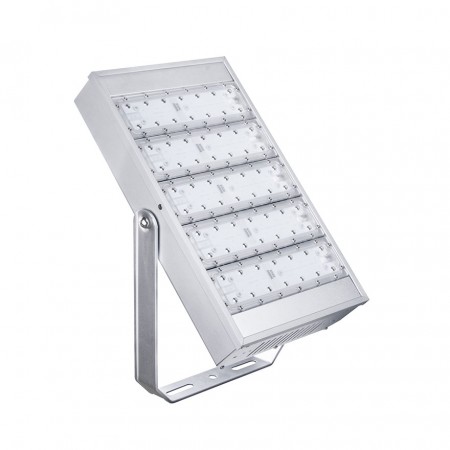

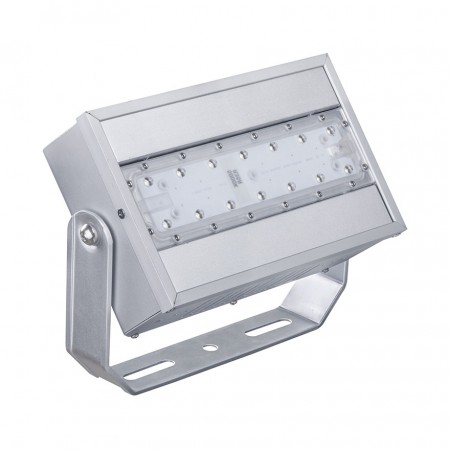

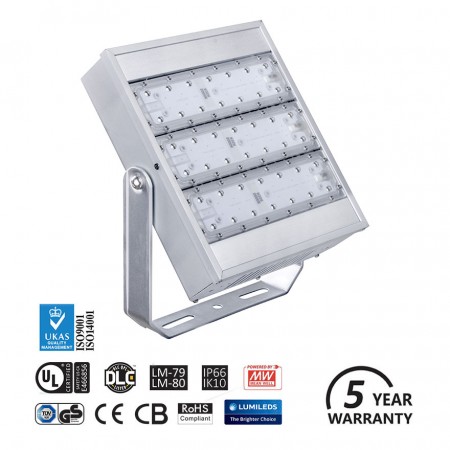

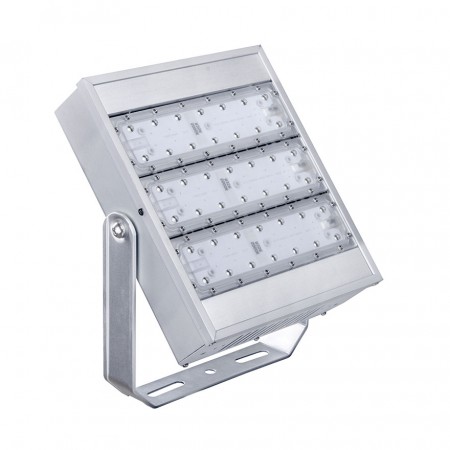

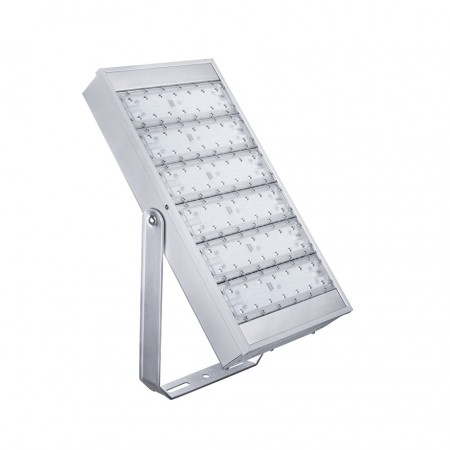

LED Floodlight - FL1
Availability: In stock
SKU:FL1
LED FL1 floodlight is 80% more efficient than traditional lights. Ideal for Warehouses, Area Lighting, Architectural Lighting, Billboards & Landscape Lighting.
- Philips LumiLEDs - Greater than 135lm/W high efficiency
- World famous Meanwell HLG Series LED driver
- Optional integrated dimming function
- Optional integrated motion sensor
- Optical lens options for maximum beam control
- Flexible Installation
- Xtreme Luminaire Design
- Bespoke LED design service for lighting projects
- 6 size options from 40w to 240w
- 5 Year Warranty
- Average electricity usage payback = 3 years
Overview
Revolutionary built-in driver design with extremely simple and clean appearance.
The Best Electric FL1 LED floodlights are using highly luminous-efficient LUMILEDS® LUXEON TX luminous source and highly reliable HLG Series Mean Well® driver.
Provide 5 years warranty on luminaire.
LED Luminous Source
LED Driver
LED Module
Overall stainless steel screws adopted.
Black & Silver Color Modules.
Cylindrical edge design, avoid cut risk.
Xtreme Luminaire Design
Optics
Applications: Billboard | Area Lighting | Architecture Lighting | Landscape Lighting
Applications: Billboard | Area Lighting | Architecture Lighting | Landscape Lighting
Applications: Billboard | Area Lighting | Architecture Lighting | Landscape Lighting
Detailed Features
Professional lens design with 60°, 90° and 110° optional
Use M16 waterproof connector, avoid hard power damage.
Full aluminium enhanced luminaire bracket supports flexible angle adjustment.Designed for a variety of applications
A special taylor-made packaging designed to guarantee the highest protection of the lamp.
Use waterproof connector for internal wiring, safe, convenient & fast.
Innovative pluggable connector, clean & efficient.
UL standard connection.
With a non-corrosive material, not only exquisite appearance, but also no corrosion concerns.
Dimming
Dimming functions are supported by optional.
- Three in One (1-10V DC or PWM Signal or Resistance).
- Output constant current level can be adjusted through out put cable by connecting a resistance or 1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
- Please DO NOT connect "DIM-" to "-V ".
» Reference resistance value for output current adjustment (Typical)
| Resistance value | 10KΩ | 20KΩ | 30KΩ | 40KΩ | 50KΩ | 60KΩ | 70KΩ | 80KΩ | 90KΩ | 100KΩ | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95% ~ 108% |
» 1-10V dimming function for output current adjustment (Typical)
| Resistance value | 1V | 2V | 3V | 4V | 5V | 6V | 7V | 8V | 9V | 10V | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95% ~ 108% |
» 10V PWM signal for output current adjustment (Typical): Frequency range: 100Hz ~ 3KHz
| Resistance value | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95% ~ 108% |
Time Control Dimming
Time control dimming function is supported by optional - Contact Best Electric Ltd for Details
After-sale Service
Best Electric Ltd warrants this hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. Best Electric Ltd provides free repair or replacement within warranty period. Best Electric Ltd shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
*Damage by thunder over 4KV(L,N to FG) /2KV(L to N) will not be covered by warranty based on EC61000-4-5.
