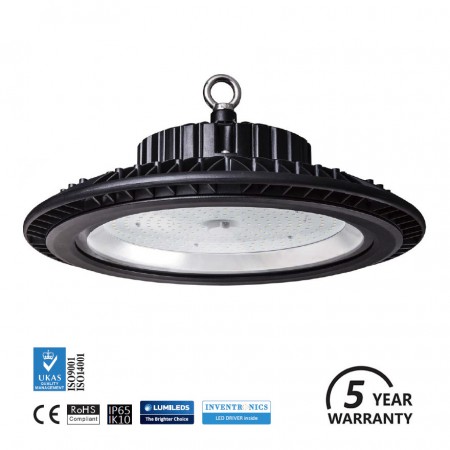

LED High Bay Light - HBL3
Availability: In stock
SKU:HBL3
LED HBL3 high bay light for warehouses & factories can increase energy efficiency by up to 80%. Ideal for industrial & commercial applications.
- Philips LumiLEDs - Greater than 150lm/W high efficiency
- Optional integrated dimming function
- Optional integrated motion sensor
- Flexible Installation
- Xtreme Luminaire Design
- Bespoke LED design service for lighting projects
- 4 size options from 60w to 200w
- 5 Year Warranty
- Average electricity usage payback = 3 years
Overview
The Best Electric HBL3 LED high bay lights use LUMILEDS® LUXEON 3030 2D luminous source and provides excellent lumen output and long-lasting stability.
The Best Electric HBL3 LED high bay lights also include high-end LED drivers with extra long lifespan.
We provide 5 years warranty on all our LED products.
LED Luminous Source
LED Driver
Heat Radiator
Optics
Applications: Workshop, Warehouse | Gas Station | Parking Garage | Area Lighting
Detailed Features
Utilize high permeability tempered glass,
providing the best lumen output of the
luminaire.
Excellent thermal management system and heat radiation enable the LEDs consistently work cooler, providing significant boosts to lifetime and efficacy.
Simple ring structure design, easy for suspended mounting.
Utilize waterproof connectors to fix the input cable, avoid damage of hard power pulling.
Dimming
Multiple dimming functions are integrated ( 0(1)-10V DC or PWM Signal).
0(1)-10V Dimming
The recommended implementation of the dimming control is provided below.
Notes:
- The dimmer can also be replaced by an active 0(1)-10V voltage source signal or passive components like resistors and zener.
- Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
- If 0(1)-10V dimming is not used, Dim + should be open.
- When 0(1)-10V negative logic dimming mode and Dim+ is open, the driver will output maximum current.
PWM Dimming
The recommended implementation of the dimming control is provided below.
Notes
- Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
- If PWM dimming is not used, Dim + should be open.
- When PWM negative logic dimming mode and Dim+ is open, the driver will output maximum current.
After-sale Service
Best Electric Ltd warrants this hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. Best Electric Ltd provides free repair or replacement within warranty period. Best Electric Ltd shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
*Damage by thunder over 4KV(L,N to FG) /2KV(L to N) will not be covered by warranty based on EC61000-4-5.
