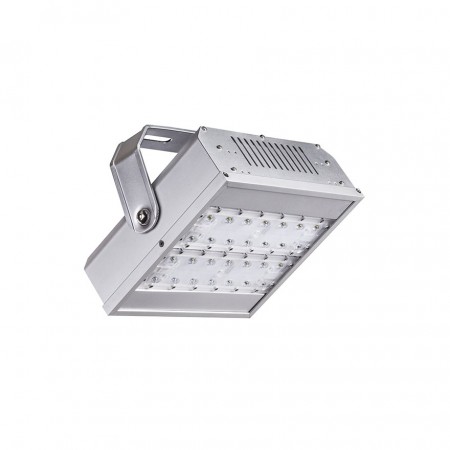

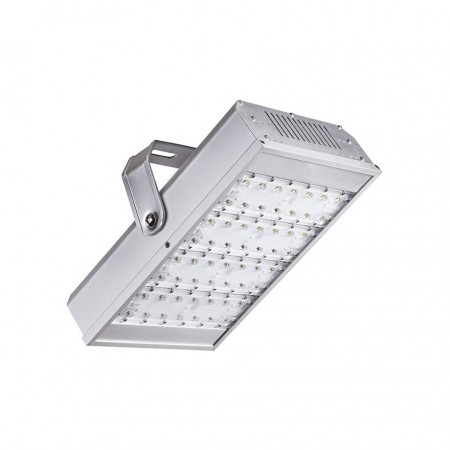

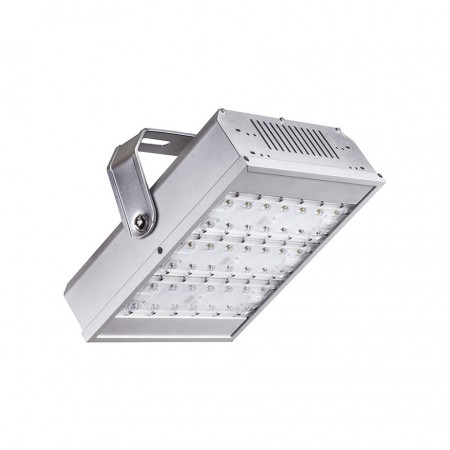

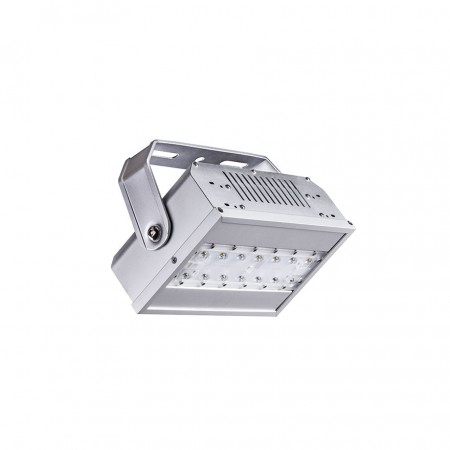

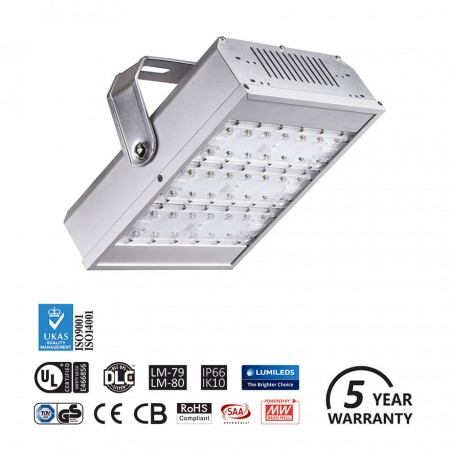

LED Tunnel Light - TL1
Availability: In stock
SKU:TL1
LED TL1 tunnel light can increase energy efficiency by up to 80% and deliver a brighter illumination of the road. Ideal for road tunnels and enclosed walkways.
- Philips LumiLEDs - Greater than 135lm/W high efficiency
- World famous Meanwell HLG Series LED driver
- Optional integrated dimming function
- Optional integrated motion sensor
- Flexible Installation
- Xtreme Luminaire Design
- Bespoke LED design service for lighting projects
- 4 size options from 40w to 160w
- 5 Year Warranty
- Average electricity usage payback = 3 years
Overview
Revolutionary built-in driver design with extremely simple and clean appearance.
The Best Electric TL1 LED tunnel lights are using highly luminous-efficient LUMILEDS® LUXEON TX luminous source and highly reliable HLG Series Mean Well® driver.
Provide 5 years warranty on luminaire.
LED Luminous Source
LED Driver
LED Module
Overall stainless steel screws adopted.
Black & Silver Color Modules.
Cylindrical edge design, avoid cut risk.
Xtreme Luminaire Design
Optics
Applications: Road Tunnels, Enclosed Walk Ways
Detailed Features
Professional lens design, to provide for the channel more efficient lighting.
UTIlize M16 waterproof connector to fix the input cable, avoid damage of hard power pulling.
Convenient connection, neat, clean and efficiency.
Use waterproof connector to fix the input cables, easy to make maintenance.
The exquisite and innovated frame holder not only makes the installation more simple but also firmer.
With a non-corrosive material, not only exquisite appearance, but also no corrosion concerns.
Dimming
Dimming functions are supported by optional.
- Three in One (1-10V DC or PWM Signal or Resistance).
- Output constant current level can be adjusted through out put cable by connecting a resistance or 1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
- Please DO NOT connect "DIM-" to "-V ".
» Reference resistance value for output current adjustment (Typical)
| Resistance value | 10KΩ | 20KΩ | 30KΩ | 40KΩ | 50KΩ | 60KΩ | 70KΩ | 80KΩ | 90KΩ | 100KΩ | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95% ~ 108% |
» 1-10V dimming function for output current adjustment (Typical)
| Resistance value | 1V | 2V | 3V | 4V | 5V | 6V | 7V | 8V | 9V | 10V | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95% ~ 108% |
» 10V PWM signal for output current adjustment (Typical): Frequency range: 100Hz ~ 3KHz
| Resistance value | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | OPEN |
| Percentage of rated current | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | 95% ~ 108% |
Time Control Dimming
Time control dimming function is supported by optional - Contact Best Electric Ltd for Details
After-sale Service
Best Electric Ltd warrants this hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. Best Electric Ltd provides free repair or replacement within warranty period. Best Electric Ltd shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
*Damage by thunder over 4KV(L,N to FG) /2KV(L to N) will not be covered by warranty based on EC61000-4-5.
